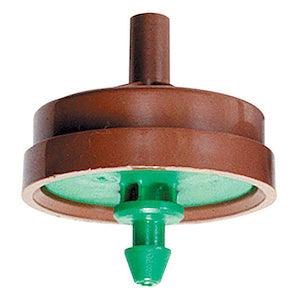

Netafim Techflow Pressure Compensating Emitter w/ Barbed Nipple Outlet - 2 GPH Green (250pcs/Bag)

The unique design of the Netafim Techflow Emitters regulates flow and provides continuous self-cleaning action during operation. These emitters have a 2.2 PSI internal check valve that helps prevent low emitter drainage holding back up to a 5 ft column of water. The anti-siphon operation prevents contaminants from being drawn into the emitter. The Techflow Emitters are pressure compensating and deliver the same flow from 14.5 to 58 PSI. Recommended minimum filtration of 120 mesh. Pair the Techflow Emitters with the 36-inch or 48-inch 4-way (40201-004800 / 40201-005000) Dripper Stake Assemblies.

Minimum Operating Pressure = 7.0PSI

Maximum Operating Pressure = 60.0PSI

Recommended Filtration: 120 Mesh

Applications

• Can be installed in piping networks with a wide range of pressure variations
• Can be used either on-surface or subsurface
• Delivers the same flow from 7 - 60 psi
• Can be used with Techline CV dripperline without causing dripperline drainage
• Wide-spaced plantings
• Planters or pots

Benefits

• Unique design regulates flow and provides self-cleaning action
• 5.0 psi internal check valve prevents low pressure drainage
• Anti-siphon operation prevents contaminants from being drawn into dripper
• Color-coding denotes flow rate

Specifications

Flow rates

• 0.5 GPH - Red
• 1.0 GPH - Black
•  2.0 GPH - Green
